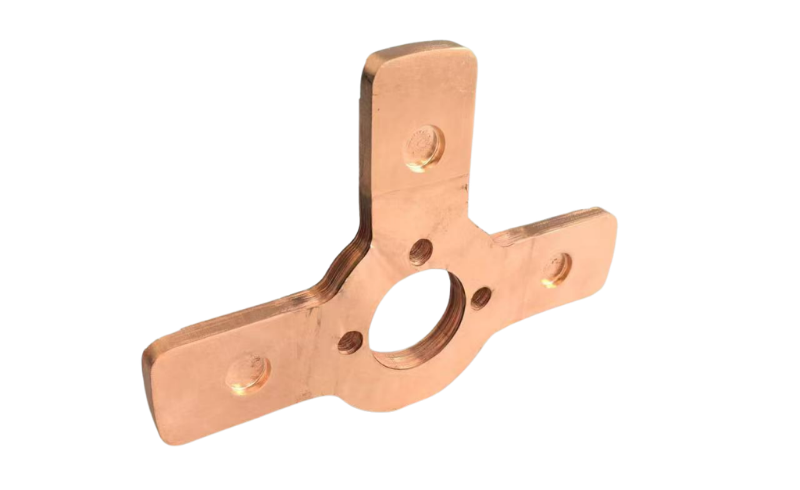

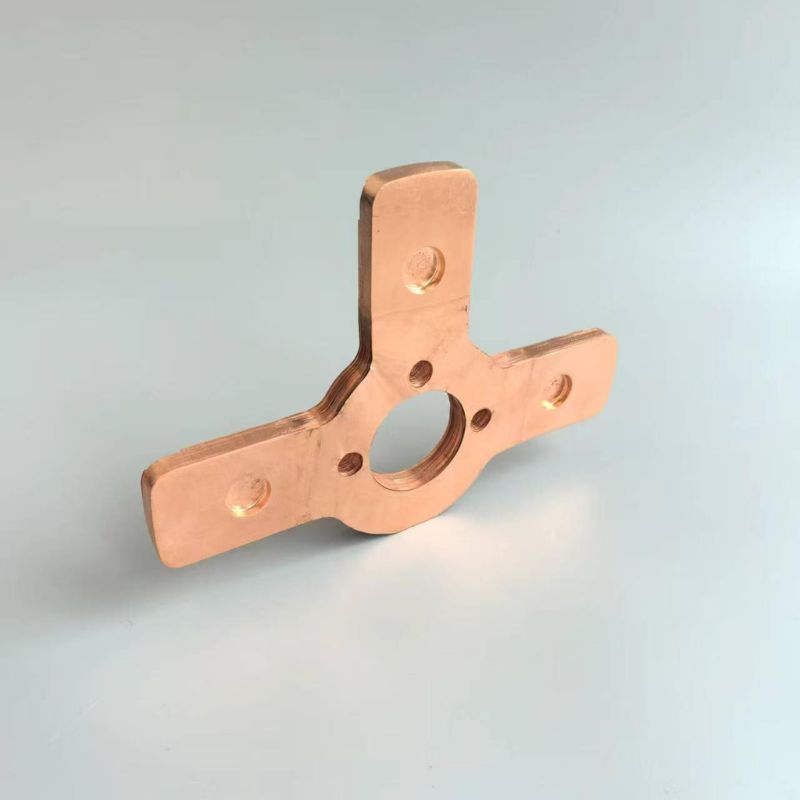

Our laminated copper busbars are crafted from high-purity C11000 copper foil with molecular diffusion welding, offering ultra-high current carrying capacity, sturdy structure, smooth surface and great vibration damping for power transmission, metallurgy and chemical industry.
Engineered from multi-layered micro-foils to deliver seamless spatial flexibility, absorb thermal expansion, and maximize power density in confined cabinet layouts.
SHZHJ engineers multi-layer laminated copper busbars using ultra-thin micro-foils — delivering exceptional spatial flexibility, seamless thermal expansion accommodation, and industry-leading power density for space-constrained cabinet layouts, EV battery packs, and high-current industrial power systems.
Ideal for high-current transformer connections, switchgear assemblies, and industrial electroplating equipment. Multi-layer foil ends are fused via high-temperature molecular diffusion welding without flux or filler metals, creating a homogeneous solid copper termination with ultra-low interfacial resistance.

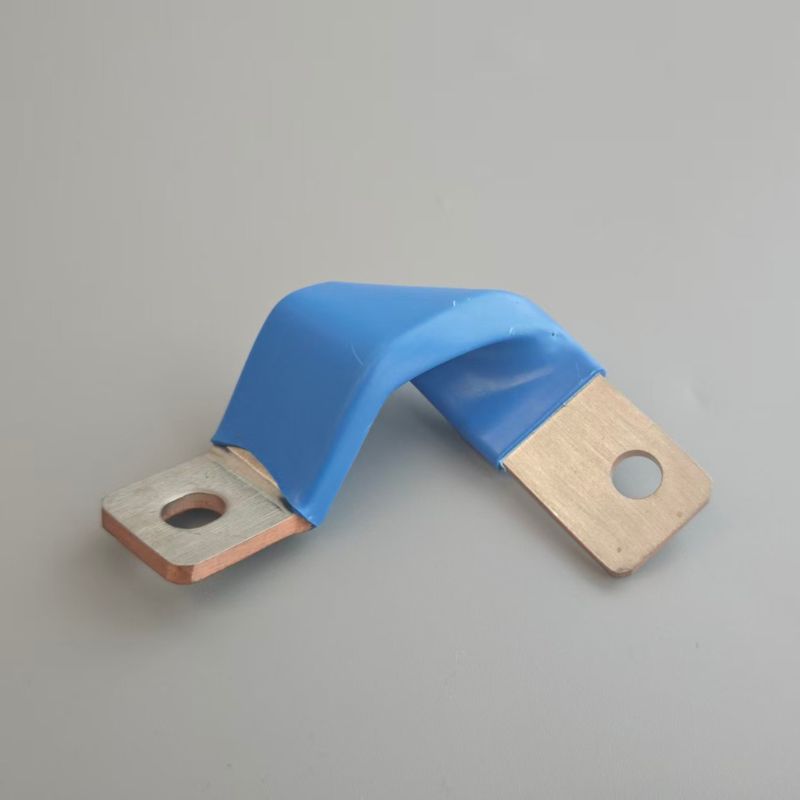

Specifically designed for electric vehicle battery modules, energy storage systems, and compact power inverters. High-dielectric insulation sleeving provides robust voltage protection while the laminated foil construction enables smooth multi-angle bending within dense enclosures.
Engineered for extreme vibration environments requiring both deep expansion joints and massive cross-sectional current capacity. This hybrid design combines the heavy ampacity of layered foils with the multidirectional flexibility of braided connectors to effectively absorb structural stress and mechanical displacement.

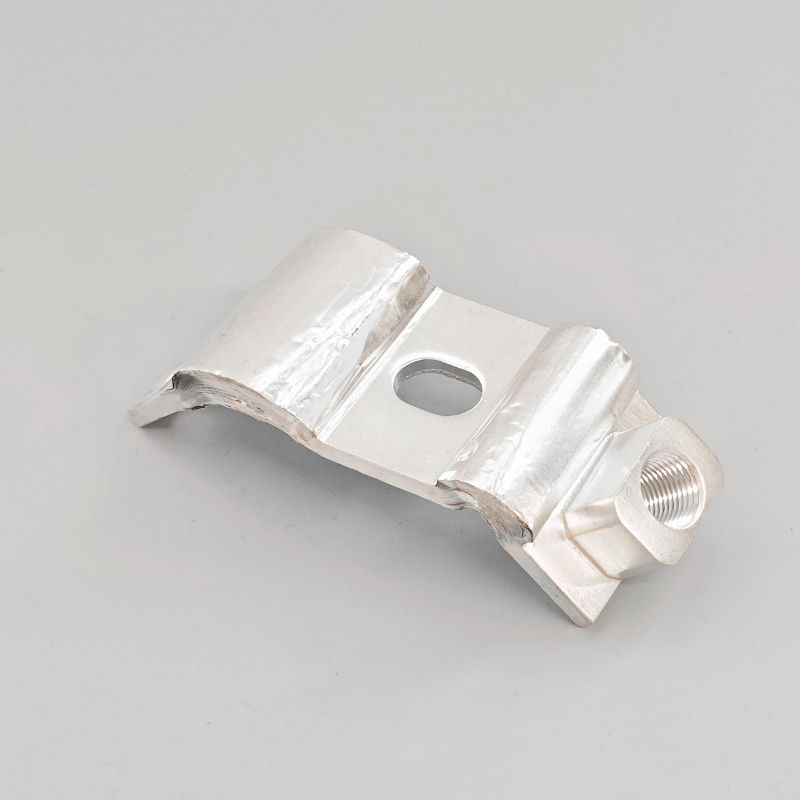

Tailored for coastal energy infrastructure, marine applications, and aggressive industrial settings. Complete tin, nickel, or silver plating across all foil layers delivers comprehensive oxidation protection and eliminates localized thermal rise at contact interfaces.
Submit your 2D dimensional drawings, 3D CAD models, or electrical performance specifications. Our engineering team will analyze your system requirements and deliver a tailored laminated busbar proposal within 24 hours.
Every SHZHJ laminated copper busbar follows a precision-engineered production workflow — from micro-foil preparation through advanced welding, forming, and insulation — ensuring consistent electrical performance, mechanical integrity, and dimensional accuracy across every batch.
High-speed automated die cutting and shearing deliver clean, burr-free edges with microscopic tolerances for multi-layer foil stacks. Precision stamping and automated pre-stack riveting ensure perfectly aligned layer geometry prior to bonding.
Three specialized welding methods are applied based on product requirements: Diffusion welding creates solid-state molecular fusion with zero filler and zero-resistance junctions; laser and ultrasonic welding are optimized for ultra-thin micro-foils and delicate tabs; resistance welding provides rapid, high-strength terminal reinforcement for industrial applications.
CNC-guided milling and post-weld trimming deliver entirely burr-free surfaces with perfectly center-aligned mounting holes. Multi-axis CNC routing enables specialized custom profiles and strict geometrical tolerance control.
Thorough multi-stage chemical acid cleaning and mechanical polishing eliminate surface oxides. Advanced passivation treatments ensure long-term stability in harsh environments, followed by comprehensive electro-tin, nickel, or silver plating to shield the copper from localized thermal degradation.
Precision forming jigs and automated benders shape laminated busbars into complex L-bends, Z-bends, or twisted spatial profiles without delaminating the internal foil layers — ensuring structural integrity at every angle.
Multiple insulation options available: flame-retardant polyolefin heat-shrink tubing (UL94-V0 rated), heavy-duty silicone-coated fiberglass sleeving for extreme temperatures, or seamless PVC dip coating (Plastisol) that perfectly conforms to complex 3D bent profiles with zero air pockets or edge gaps.
Each production batch undergoes rigorous inspection including electrical conductivity mapping, dimensional profiling, tensile strength testing, insulation dielectric verification, and visual workmanship inspection to guarantee consistent quality.
Laminated foil architectures reduce loop inductance by over 70% while effectively suppressing damaging IGBT voltage spikes — providing critical protection for sensitive power modules and extending system operational lifetime.
Precision interlayer capacitance architectures act as a built-in natural electrical filter, drastically reducing EMI emissions and helping your equipment pass stringent EMC certification requirements smoothly.
A single consolidated laminated busbar replaces dozens of bulky cables, delivering significantly cleaner cabinet layouts and reducing total factory assembly time by more than 50%.
Ultra-tight copper-to-insulation micro-bonding ensures an exceptionally short thermal path, enabling higher current-carrying capacity while maintaining lower temperature rise under sustained heavy loads.
100% tailor-made terminal configurations, precise mounting hole matrices, and complex 3D bending angles deliver true plug-and-play integration that eliminates wiring errors during field deployment.
SHZHJ combines advanced manufacturing technology, rigorous quality management, and responsive engineering support to deliver laminated copper busbars that set the standard for reliability and performance in critical power applications.
Premium Copper Foil — No Compromises. We exclusively process certified C11000 / Cu-ETP copper foil with 99.95% minimum purity, backed by full material traceability. Our laminated busbars deliver consistent electrical conductivity and long-term mechanical stability — no hidden defects from recycled or substandard inputs.
Molecular-Bonded Foil Ends — Zero Air Gaps. Our diffusion welding process creates solid-state molecular fusion across all foil layers without filler metals, producing terminations that behave as single solid copper blocks. This eliminates the interfacial resistance, oxidation, and localized heating found in mechanically fastened alternatives.
Seamless Insulation Integrity. Whether through heat-shrink sleeving, extruded jackets, or PVC dipping, our insulation solutions maintain complete dielectric coverage with zero air pockets, edge gaps, or delamination — ensuring reliable voltage protection throughout the product lifecycle.
Flexible Development Support. From prototype quantities to high-volume production, SHZHJ provides responsive engineering collaboration, rapid sampling, and scalable manufacturing capacity aligned with your project milestones and delivery requirements.
Working with SHZHJ means partnering with a dedicated copper component manufacturer that delivers custom-engineered laminated busbars, expert technical support, and dependable production capability from concept through to delivery.
At SHZHJ, safety, efficiency, and long-term reliability are embedded in every laminated copper busbar we produce for EV battery systems, energy storage installations, and industrial power distribution. Our philosophy of safe power delivery, intelligent interconnection guides our design, engineering, and manufacturing processes.
High-voltage battery systems and power distribution networks demand absolute integrity — any material defect, manufacturing inconsistency, or insulation compromise can have serious operational consequences. SHZHJ upholds these principles:
Minimized resistance, controlled thermal rise. High-purity copper foils combined with molecular-diffusion welded terminations ensure ultra-low junction resistance, eliminating hot spots and thermal runaway risks from the outset.
Robust construction for harsh conditions. Comprehensive plating options (tin, nickel, silver) provide superior oxidation and corrosion resistance, maintaining stable electrical performance across temperature extremes, humidity, and aggressive atmospheric conditions.
Reliable insulation protection. Our multi-layered insulation solutions — heat-shrink sleeving, extruded jackets, and seamless PVC dipping — effectively prevent short circuits, leakage, and dielectric breakdown, delivering comprehensive electrical safety.
Testing beyond industry benchmarks. Every production batch undergoes electrical conductivity mapping, mechanical pull testing, dielectric voltage withstand verification, and dimensional profiling — meeting or exceeding the most stringent global safety standards.
In fast-paced EV and energy storage markets, system efficiency, integration speed, and operational reliability are critical competitive advantages. SHZHJ laminated busbars are engineered for safety and intelligent system integration:
Precision-engineered for rapid installation. Tight dimensional tolerances and thoughtfully designed terminal configurations greatly simplify on-site assembly, reducing installation time, labor costs, and the potential for wiring errors.
Standard platforms with custom adaptability. From universal busbar families to application-specific designs for unique battery architectures and inverter layouts, we ensure seamless integration from development through high-volume production.
Process-optimized designs. Our laminated busbar solutions are engineered for automated assembly and production-line integration — helping manufacturers increase throughput, reduce total cost of ownership, and accelerate time-to-market.
Proven field reliability. Superior mechanical flexibility, thermal cycling endurance, and stable contact resistance translate directly to lower failure rates, reduced maintenance interventions, and extended system service life.
We are committed to providing your EV battery, energy storage, and industrial power systems with the most advanced and reliable laminated copper connection solutions — powering a sustainable energy future together.
We are always here to help with any questions regarding laminated copper busbars and power transmission solutions.
Built from stacked C11000 copper foils bonded by molecular diffusion welding, our laminated copper busbars deliver exceptional current capacity, structural integrity, and vibration damping for the most demanding power transmission applications.
