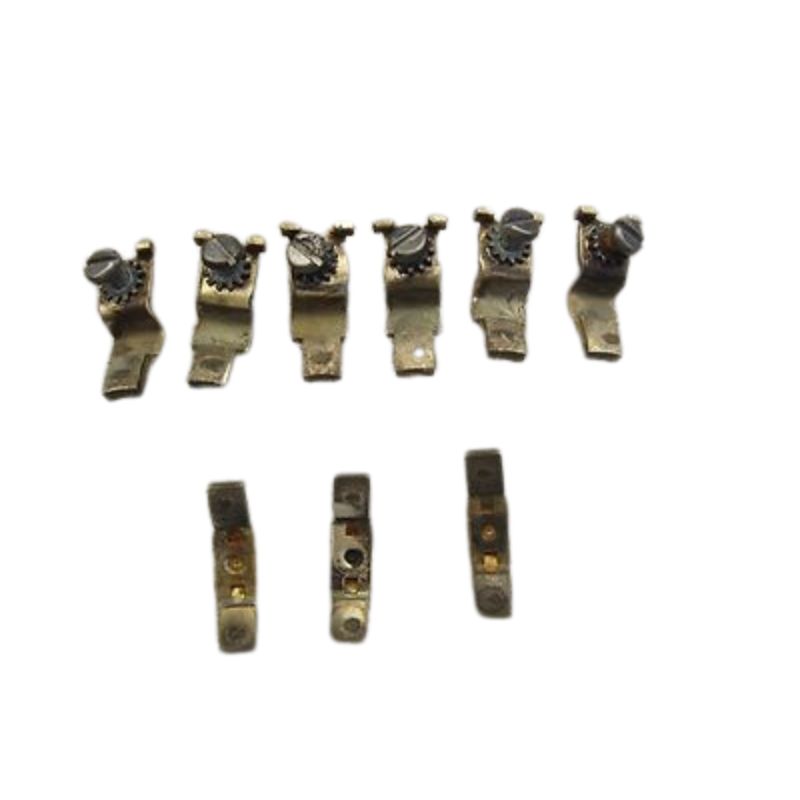

Square D 8536 Contact Kits

Square D 8536 contact kits are replacement contact kits used to service compatible Class 8536 Type S NEMA motor starters. The Class 9998 replacement kit series covers different 8536 starter sizes, with the correct kit number depending on the starter type and NEMA size.

These kits are intended for maintenance and contact replacement rather than complete starter replacement. Depending on the equipment configuration, a kit can include movable and stationary contacts, contact springs where applicable, and other required hardware.

Description

Reviews

Specifications

Item	Details
Product Type	Replacement Contact Kit
Brand	Square D / Schneider Electric
Starter Class	8536 Type S
Replacement Kit Class	Class 9998
Application	NEMA Motor Starters
Available Sizes	NEMA Size 00 through Size 7, depending on starter type

Square D 8536 Contact Kit Replacement

A worn contact assembly can affect the switching performance of a motor starter after extended operation. Replacing the contact components provides a maintenance option for compatible 8536 Type S starters while retaining the existing starter assembly.

8536 Contact Kit Part Numbers

Schneider Electric lists different Class 9998 contact kits for the various 8536 Type S starter sizes. For example, 9998SL2 is specified for 8536SB NEMA Size 0 starters, 9998SL3 for Size 1, and 9998SL4 for Size 2. For Size 3, the corresponding kit is 9998SL7.

8536 Type S	NEMA Size	Class 9998 Kit
SB	0	9998SL2
SC	1 / 1P	9998SL3
SD	2	9998SL4
SE	3	9998SL7
SF	4	9998SL9
SG	5	9998SL11
SH	6	9998SL25
SJ	7	9998SL30

Applications

Square D 8536 contact kits are used for maintenance of Type S full-voltage NEMA motor starters in industrial motor-control applications. They are suitable when the contact components require replacement but the existing starter remains otherwise serviceable. Certain Class 9998 kits may also apply to related Square D contactors and lighting contactors depending on the specific Type and Size.

Why Replace the Contact Kit?

Contact surfaces experience electrical and mechanical wear during repeated switching. A replacement kit can renew these components without replacing the entire starter, helping maintenance teams extend the service life of compatible equipment.
